Data East Display Products
Replacement 128x16 LED Displays for use in Data East Pinball Machines.
Upgrade your machine now!
Currently Available Kits for Data East Version 3 System
Pinball Machines:
Batman, Checkpoint, Hook, Star Trek 25th Anniversary, Teenage Mutant Ninja Turtles
Replaces Data East Display P/N 520-5042-00
Batman, Checkpoint, Hook, Star Trek 25th Anniversary, Teenage Mutant Ninja Turtles
Replaces Data East Display P/N 520-5042-00
The latest in LED technology!!!
Design Information
Advantages of our new displays:
All new parts.
Through hole PCB design for easy repair and long term reliability.
Removable LED panel for easy upgrade to other colors or future easy repair.
16x16 LED modules for nice straight alignment of dots.
Adjustable brightness.
White LED panel version which can be used with different color filters.
Low voltage, no more problems with the High Voltage section on the machine power supply.
Note: you will need the Display EPROM from your existing display to install in the new display. If you think your EPROM is bad, contact us before ordering.
Additional notes, the Data East 128x16 display is different than the 128x32 display that is used in many other machines. It not only includes the driver circuits for the LEDs, but it also contains a power supply, a CPU (Z80A), memory, EPROM chip for display code, and additional circuitry to support all these. So some people ask why is this dispaly about the same price as the 128x32 LED display, well, those are the reasons, much more circuitry on the board.
Data East 128x16 Display
Amber Display Kit
Status: Limited Availibility, See our Ebay store for ordering.
White, Red, Blue, or Green Display Kit
Status: Limited Availibility, See our Ebay store for ordering.

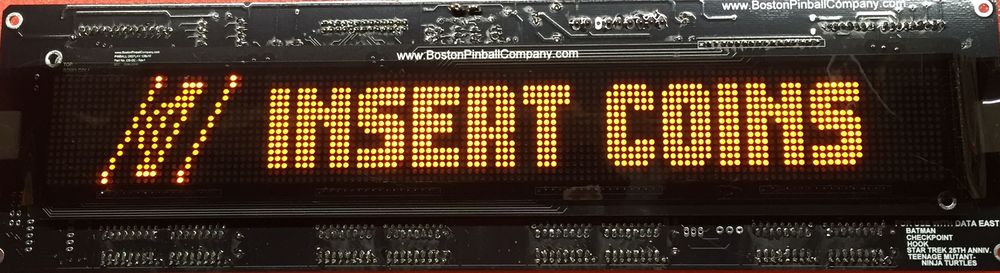

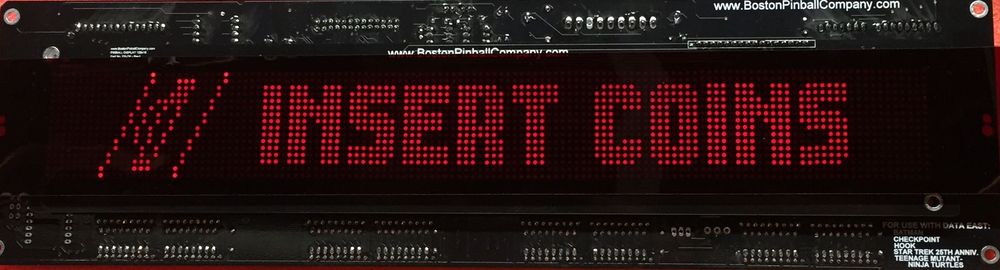

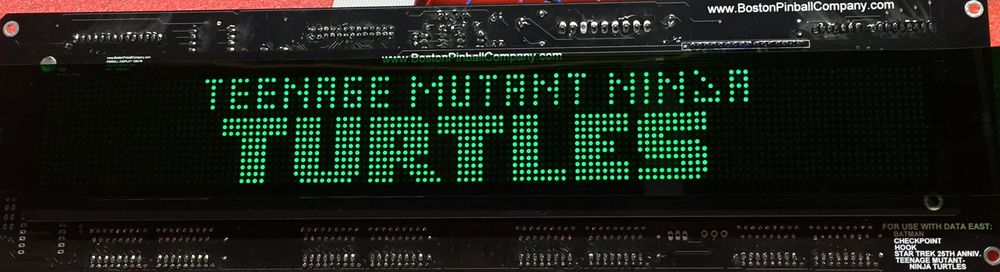

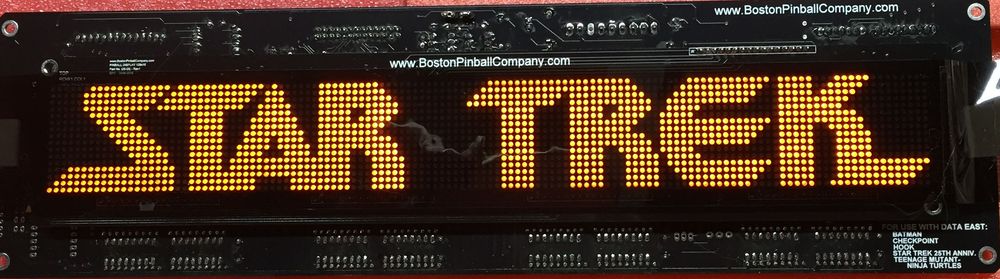

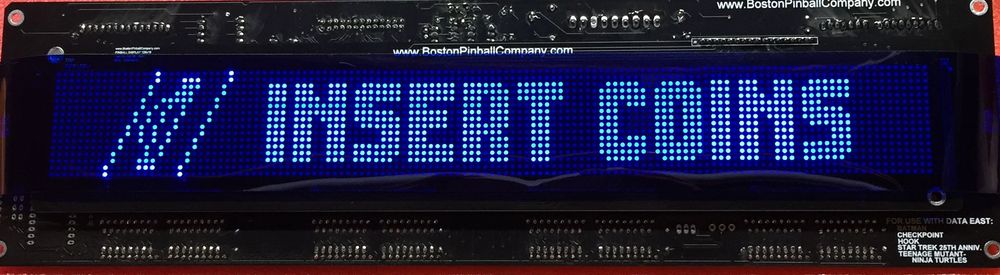

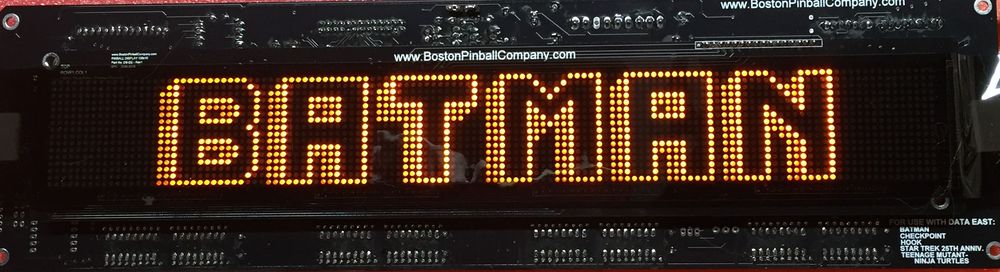

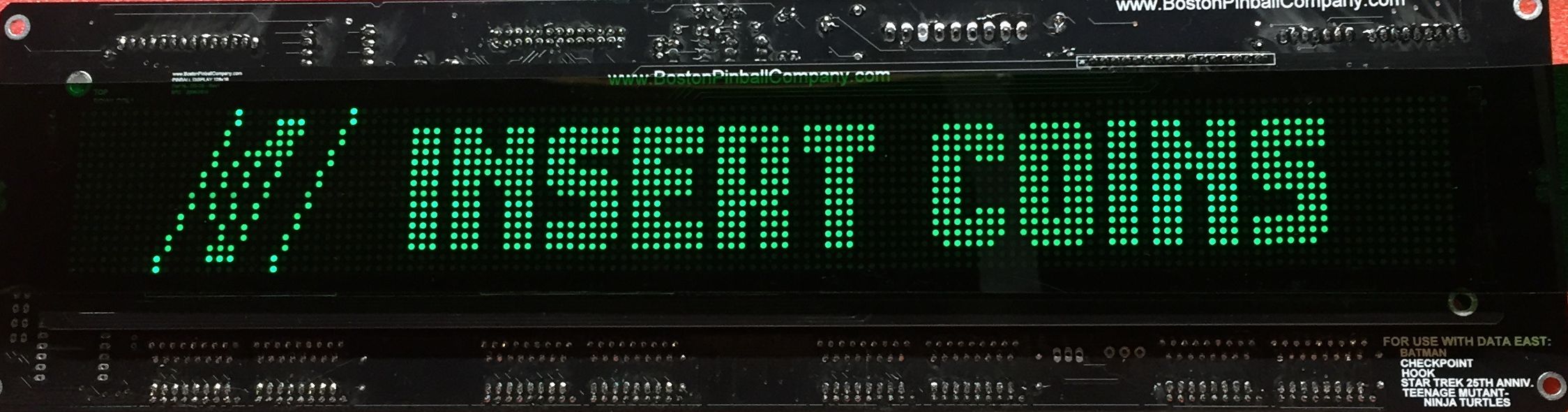

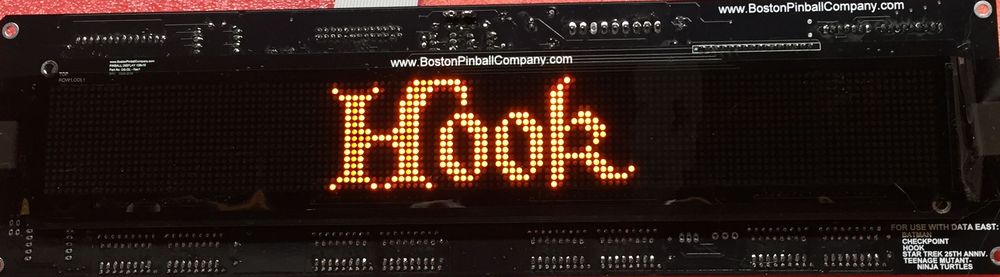

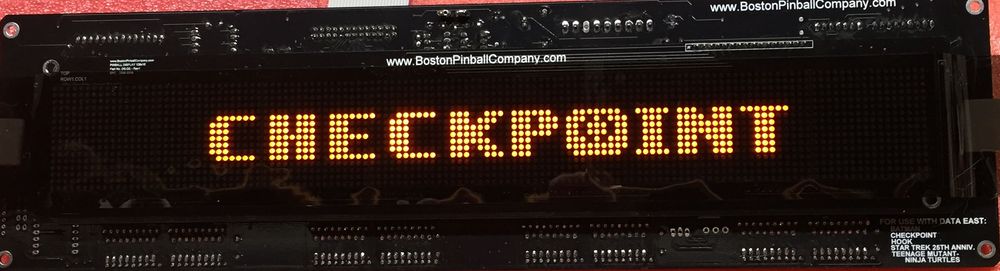

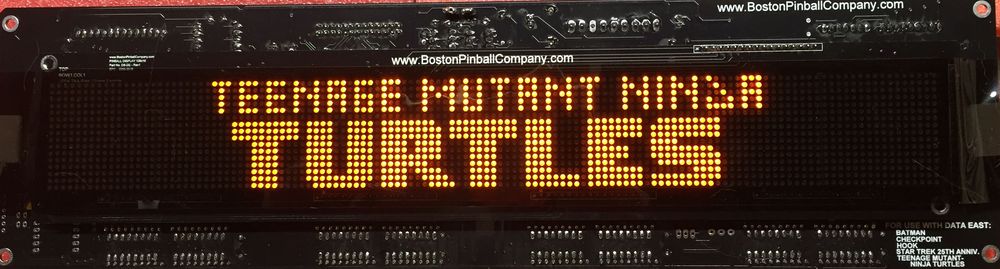

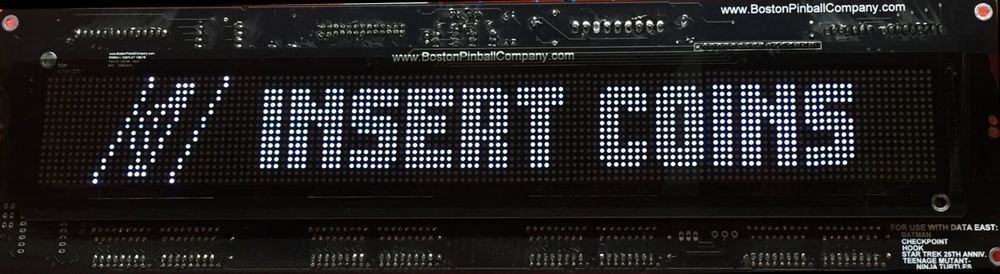

Some Pic's of our New Displays.
Free Shipping to US customers, outside US we will send a shipping quote after your order.
