Replacement Driver Board for use in Gottlieb Pinball Machines.
This board is a replacement part for a Gottlieb System 1 Driver Board used in a pinball machine.
These boards have all NEW components! This board is also know as a Master Driver Board, Solenoid Driver Board, or Lamp Driver Board. Remember, that used board on Ebay or a tested or reconditioned board you may find at a pinball sales web site is going to be 30+ years old, it's been used for many thousands of hours. It's life is almost up, or is going to be up shortly after you install it in your machine. Don't waste $50-$100 on a used board when you can get a BRAND NEW one! Buy a spare, so when that old board of yours goes bad, just pop in a NEW one!
Advantages of our NEW driver board
All new components, not 30 years old! Today's components are higher quality and more reliable. These new boards will last a lot longer than old reconditioned, retested, removed from old machines, or new old stock boards.
NEW versions of the power transistors, we have used the latest transistors to eliminate the old out dated ones. Replacements will be much lower cost and easier to obtain in the future if needed.
Protection diodes for the large transistor circuits. Older Gottlieb boards did not have these installed. If you have an old board without them and a solenoid goes bad, there is a good chance you will damage your CPU board.
Sockets for IC chips Z1 to Z9, if these chips go bad in the future, you can just pop in a new one, no de-soldering or reworking needed of the IC chips.
Extra ground wire connection, the old Gottlieb boards did not have a very good ground scheme, we have added the additional ground that is needed to connect to chassis ground. This provides additional protection and stability.
We have also provided secondary mounting pads for the old 2N3055 and MPS-U45 transistors. If you have extras and need to use them in the future, you still can.
These new boards are compatible with the original Gottlieb CPU board or one of the newer Ni-Wumpf or Pascal PI-1 CPU boards.
Classis look and feel of the original design, but with an new style and reliability. Components have the same reference numbers as the original boards, so the old schematics can be used for troubleshooting.

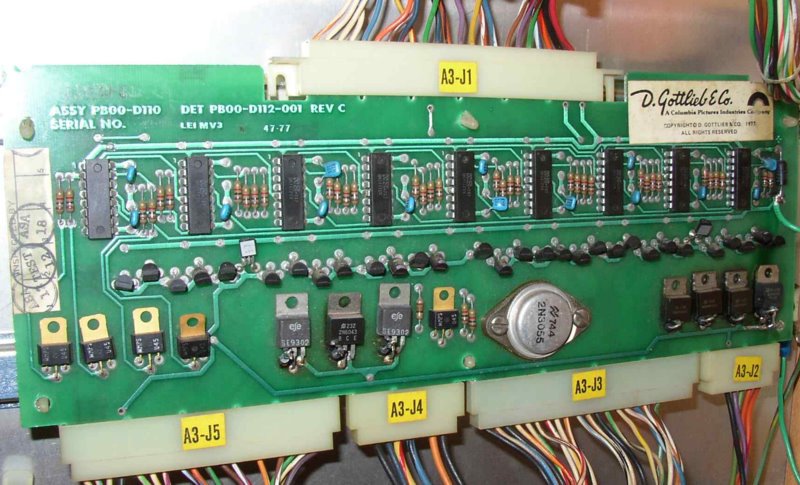

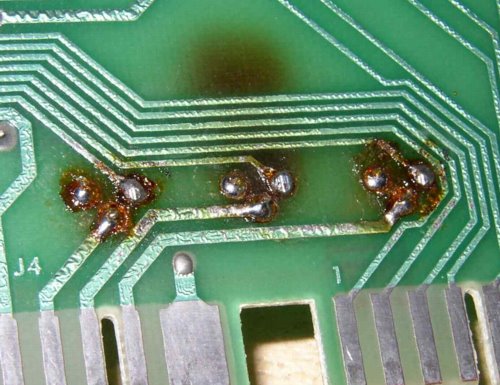

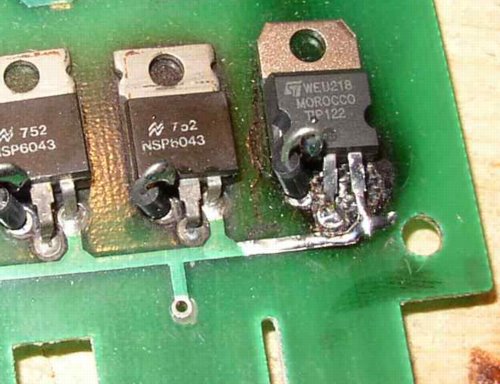

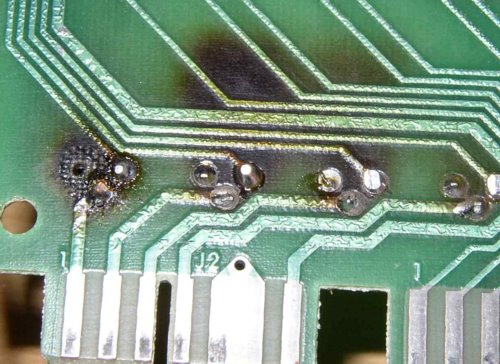

Does your board look like this? Reworked too many times, overheated, overworked, or just looks old and worn out!

Upgrade your machine now!
Currently Available for any System 1 Machine.
System 1
Cleopatra, Sinbad, Joker Poker, Dragon, Solar Ride, Countdown, Close Encounters
Charlie's Angels, Pinball Pool, Totem, Hulk, Genie, Buck Rogers, Torch, Roller Disco, Asteroid Annie & The Aliens
Please note: Kit includes one System Driver 1 Board.
Design Information

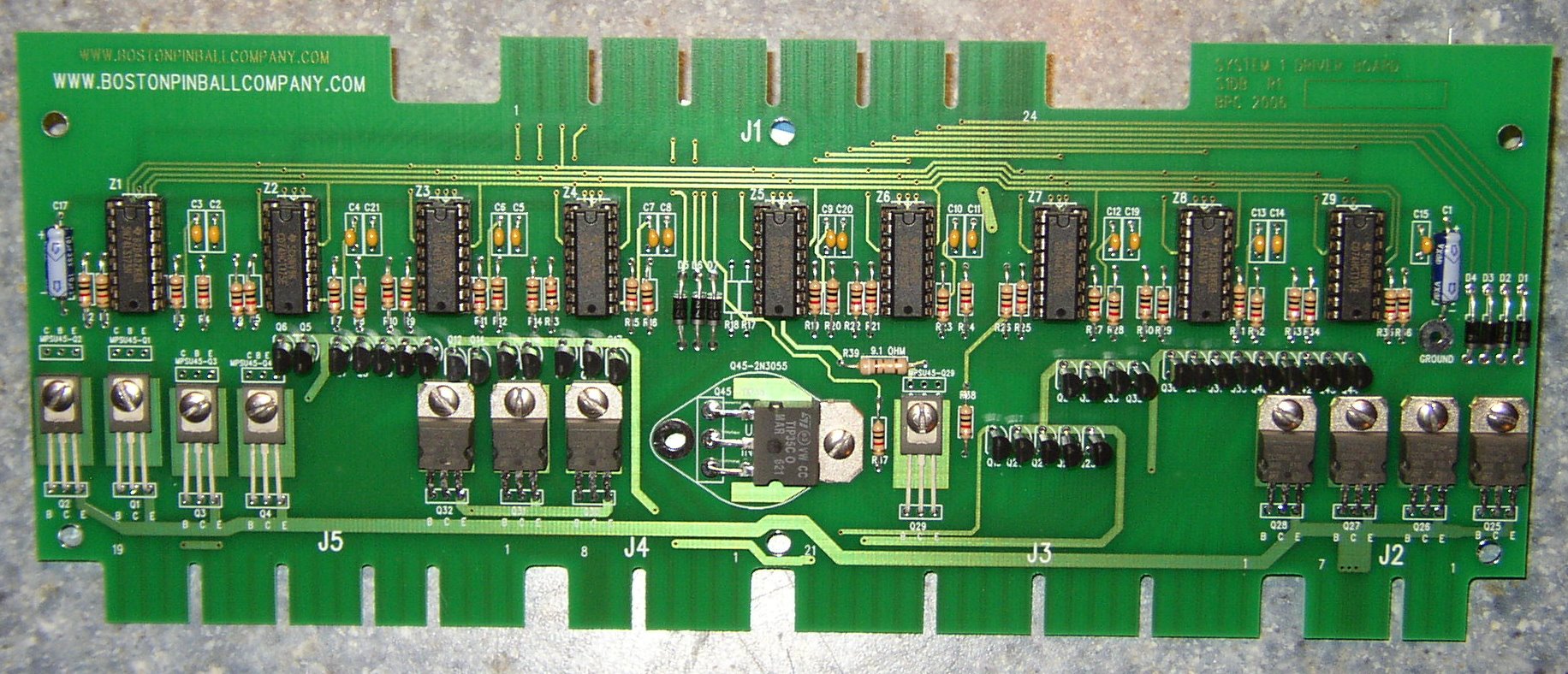

This NEW Driver Board (a.k.a., Master Driver Board, Solenoid Driver Board, Lamp Driver Board) is designed to directly replace the existing Gottlieb Master Driver board. It will mount in the same location using the existing plastic standoffs, and all the connectors are the same. Some additional items to note are that all components,  transistors, resistors and IC chip reference designators (Q1, Q2, Z1, Z2, etc. ) are the same as the old board. (With the exception of a few new components.) Making identification easy.
Compatibility; This new driver board is compatible with the original Gottlieb Main Control Board, the Ni-Wumpf replacement CPU board, and with the Pascal PI-1 replacement CPU board. More information on these can be found at www.ni-wumpf.com or contact@flippp.fr or their website at www.flippp.com
Design features of the board included, improved layout, new state of the art Darlington transistors to replace those old obsolete, over priced transistors (MPS-U45's). Dual transistor footprints that allow the use of older transistors (if for some reason you want to.) Thermal pads for the new transistors. Ground wire to correct ground reference problem with old driver board.
These boards have all NEW components! Remember, that used board on Ebay or a tested or reconditioned board you may find at a pinball sales web site is going to be 30+ years old, it's been used for many thousands of hours. It's life is almost up, or is going to be up shortly after you install it in your machine. Don't waste $50-$100 on a used board when you can get a BRAND NEW one! Electronic components do ware out, especially those transistor.  Have a spare on hand, or get one so that when your does go bad, you can install the NEW one and keep playing!!!
Troubleshooting Existing Boards
Our new driver board can correct problems ranging from dim lamps, not working lamps, not working chimes, or drop targets that won't reset. You can test some of these features with the self test mode on the CPU control board. See your manual for instructions on how to test the outputs of the driver board. If you find that some of your lamps still don't work even after you have replaced the lamp, the problem could be in the driver board. If your drop targets don't always reset, the problem could be a transistor on the driver board.
System 1 machines have been known to have problems with CPU boards that have leaky batteries that have caused corrosion to the cable between the CPU board and the driver board. You should check the pins on the connectors to see if any pins are broken, corroded or weak spring force. If you have replaced your CPU board with a new version because of battery corrosion, you should definitely check the connector pins. Order a new cable with our diver board.
An excellent web site that describes problems in great detail is www.PinWiki.com
IMPORTANT WARNING...never remove the connector at the displays or control boards or driver board without first turning the machine OFF.  You will probably damage the control board!
Driver Board Components and functions
Driver Board Chip #
Driver Board Transistor #
Output ID  (L=Lamp #)
Lamp Function (example only, see manual for your specific game)
Z1
Q1
L1
Game over relay
Q2
L2
Tilt relay
Q3
L3
High game to date
Q4
L4
Same player shoots again
Z2
Q5
L5
Red rollover
Q6
L6
Purple rollover
Q7
L7
Top yellow rollover
Q8
L8
Bottom left yellow rollover
Z3
Q9
L9
White rollover
Q10
L10
Top white target
Q11
L11
Bottom white target
Q12
L12
Not used
Z4
Q13
L13
Not used
Q14
L14
Advance
Q15
L15
Advance
Q16
L16
Advance
Z5
Q17
L17
Advance
Q18
L18
Advance
Q19
L19
5X bonus
Q20
L20
3X bonus
Z6
Q21
L21
4X bonus
Q22
L22
2X bonus
Q23
L23
1000 bonus
Q24
L24
2000 bonus
Z7
Q33
L25
3000 bonus
Q34
L26
4000 bonus
Q35
L27
5000 bonus
Q36
L28
6000 bonus
Z8
Q37
L29
7000 bonus
Q38
L30
8000 bonus
Q39
L31
9000 bonus
Q40
L32
10,000 bonus
Z9
Q41
L33
Right yellow rollover
Q42
L34
Bottom yellow rollover
Q43
L35
Not used
Q44
L36
Not used
N/A
Q25
SOL#2
KNOCKER
N/A
Q26
SOL#3
TENS CHIME
N/A
Q27
SOL#4
HUNDREDS CHIME
N/A
Q28
SOL#5
THOUSANDS CHIME
N/A
Q32
SOL#1
OUTHOLE
N/A
Q31
SOL#6
WHITE DROP TARGET RESET
N/A
Q30
SOL#7
PURPLE DROP TARGET RESET
via Q29
Q45
SOL#8
RED DROP TARGET RESET
